ORACLE Lighting H1 - S3 LED Light Bulb Conversion Kit High/Low Beam (Non-Projector)

The ORACLE S3 LED Conversion Kit instantly upgrades your H1 headlights to 3,200 lumens of crystal-clear 6000K output — approximately 2–3x the raw lumen output of a factory H1 halogen. The electronic components are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans. No engine bay driver boxes. No extra wiring. Installs exactly like a halogen bulb.

This version is optimized for reflector (non-projector) headlight housings — where the bulb sits behind a parabolic mirror-finish reflector bowl. The CSP chip orientation is calibrated for reflector optics to maximize beam throw and pattern quality. If your vehicle uses projector-lens headlights, see the Projector version instead.

• 3,200 lumens — crystal-clear 6000K, ~2–3x brighter than factory H1 halogen
• CSP (Chip Scale Package) LED chip — high intensity, low heat, small form factor; chip orientation calibrated for reflector housing optics
• 130 lm/W luminous efficacy — industry-leading efficiency ratio

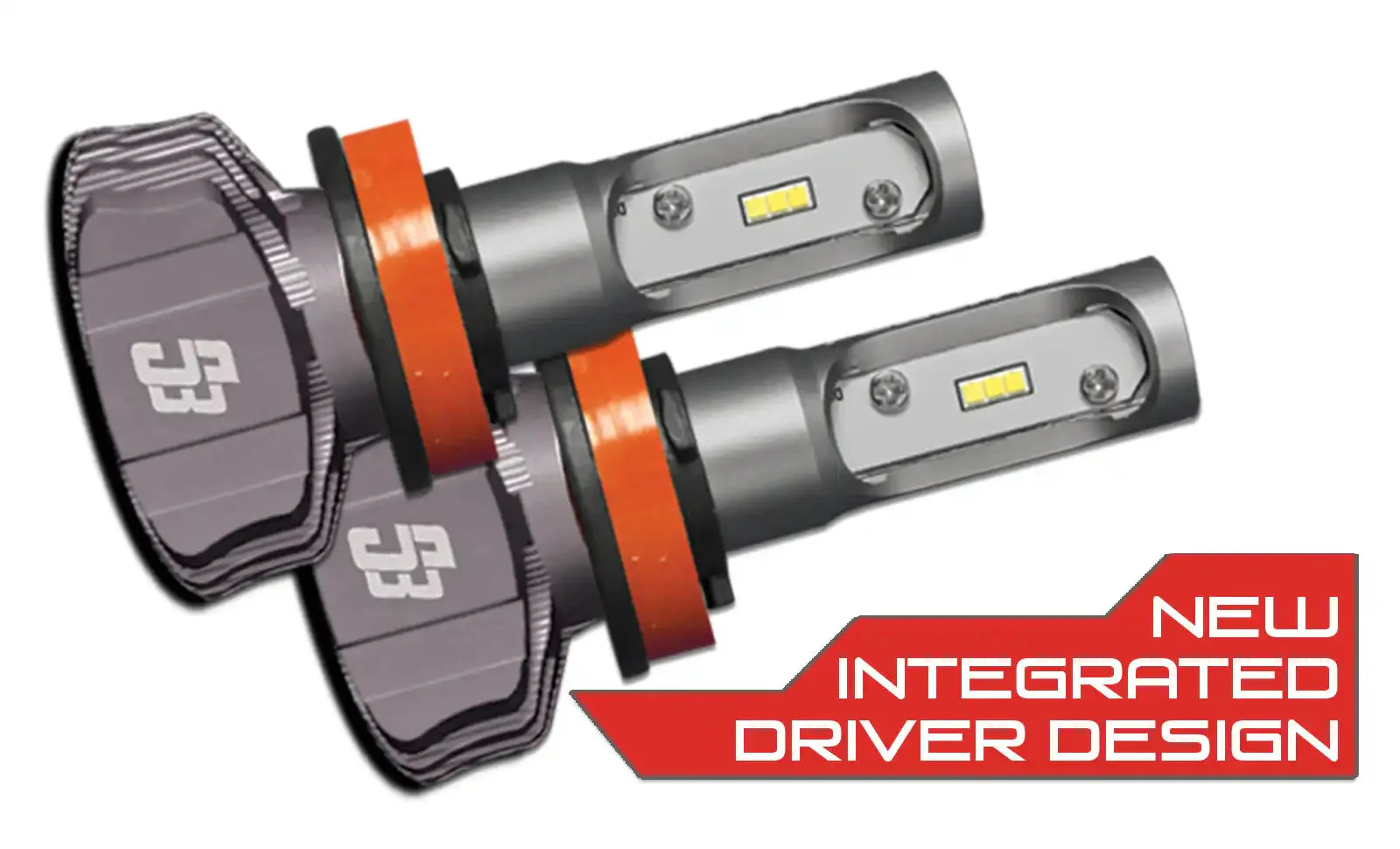

• Sealed waterproof heatsink design — driver electronics integrated into bulb body; no external drivers or cooling fans
• Low-profile design — fits cleanly inside the vast majority of H1 housings without clearance issues
• 12V/24V compatible — cars, trucks, and fleet vehicles
• Double-layer copper PCB — premium thermal management
• Under 1 amp current draw — minimal electrical load
• Plug-and-play — direct H1 socket replacement, no modification required
• Sold as a pair — both driver and passenger side included
• 1-Year Limited Warranty

The S3 H1 kit is available in three versions — each with the CSP chip array oriented differently for a specific headlight housing type. Using the wrong version for your housing will result in a suboptimal beam pattern.

Fits any vehicle using an H1 bulb in a reflector (non-projector) headlight housing. 12V and 24V systems supported.

• (2) ORACLE S3 H1 LED Headlight Conversion Bulbs — driver and passenger side

What is the difference between the Non-Projector, Projector, and High Beam Only versions?

Each version has the CSP LED chip array oriented differently for a specific housing optic. Non-Projector is for reflector bowl housings. Projector is for projector-lens housings and maintains a clean cutoff line. High Beam Only is for dedicated high beam circuits optimized for maximum throw. Always select based on your housing type — using the wrong version produces a suboptimal beam pattern.

Do I need to mount external driver boxes in my engine bay?

No. The driver electronics are integrated directly into the sealed heatsink body. The S3 is entirely self-contained — no external components to mount, no additional wiring to route. Installation is as simple as removing the factory H1 halogen and installing the S3 in its place.

My vehicle is a Jeep / BMW / Mercedes — will these work without modification?

They will work, but Dodge, Chrysler, Jeep, and later-model European vehicles may require additional CAN Bus decoder harnesses if flashing, strobing, or shutting down with engine ON occurs. A decoder harness is available separately and resolves this completely as a one-time addition.

How bright is 3,200 lumens compared to a factory H1 halogen?

A standard factory H1 halogen produces 1,000–1,550 lumens. The ORACLE S3 delivers 3,200 lumens of crystal-clear 6000K output — approximately 2–3x the raw lumen output. The cooler color temperature (6000K vs. ~3,200K halogen) further increases perceived contrast and visibility on dark roads.

Will these fit inside my sealed headlight housing without clearance issues?

The low-profile S3 heatsink is specifically engineered to fit the vast majority of H1 housings without clearance issues. However, fitment can vary by vehicle — consult your housing depth and rear clearance before purchasing if you have a tight or sealed housing.

What warranty does this kit come with?

1-year limited warranty covering defects in materials and workmanship. The sealed waterproof heatsink construction and CSP chip technology are engineered to outlast the warranty period significantly under normal automotive use.

Are these sold as a pair or individually?

Sold as a complete pair — both driver and passenger side bulbs are included in a single purchase. One kit covers a complete headlight upgrade for both sides of the vehicle.
