Ford Bronco Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W

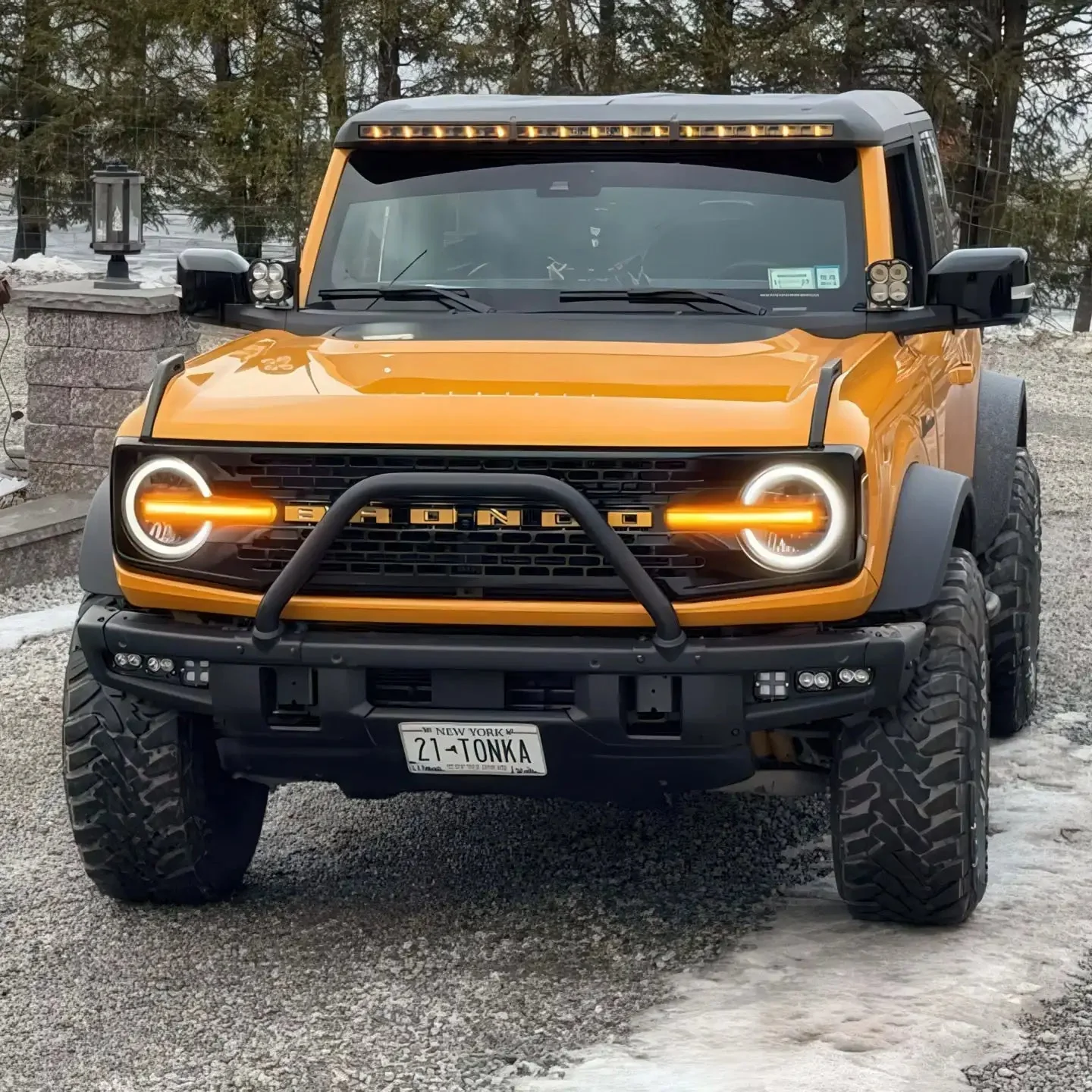

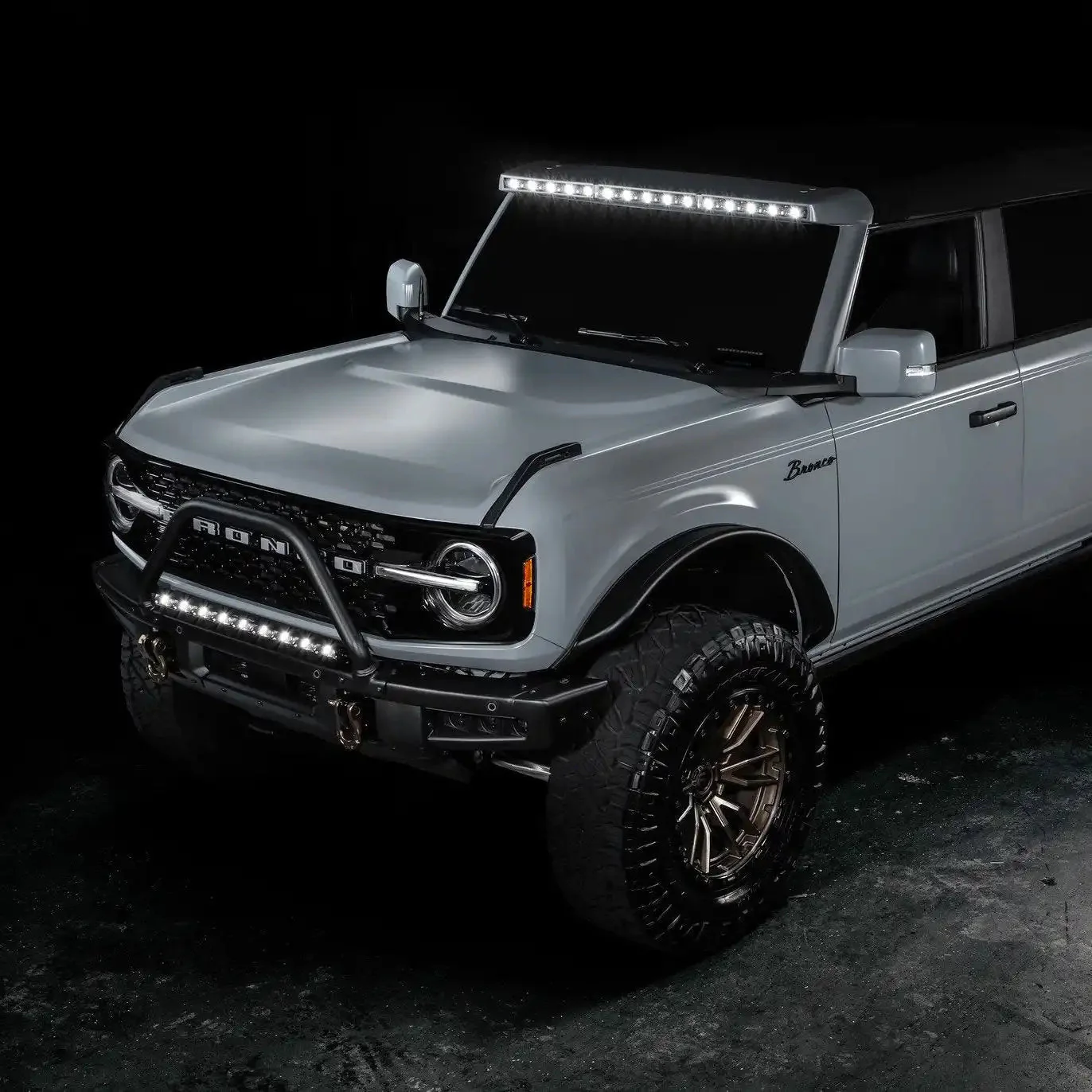

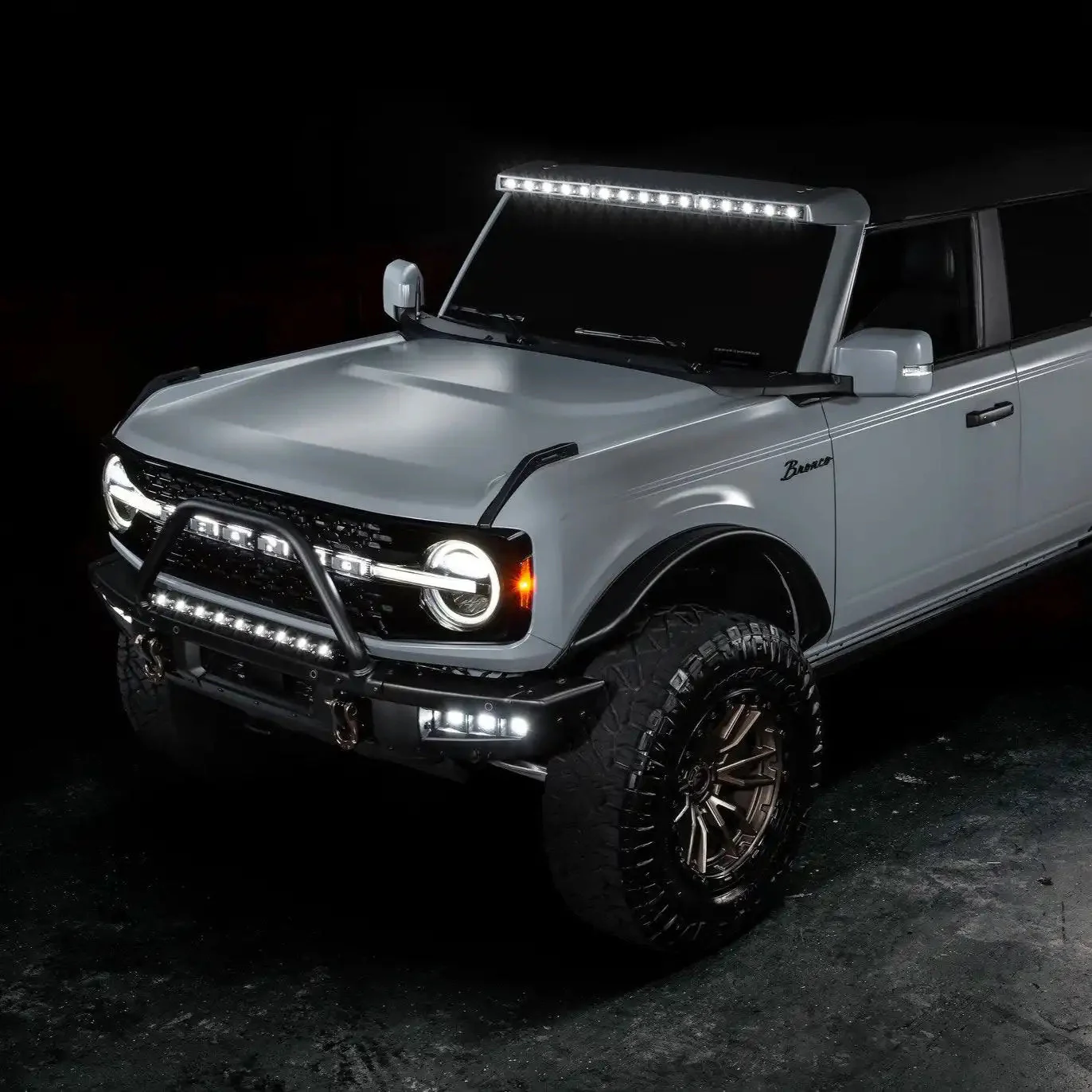

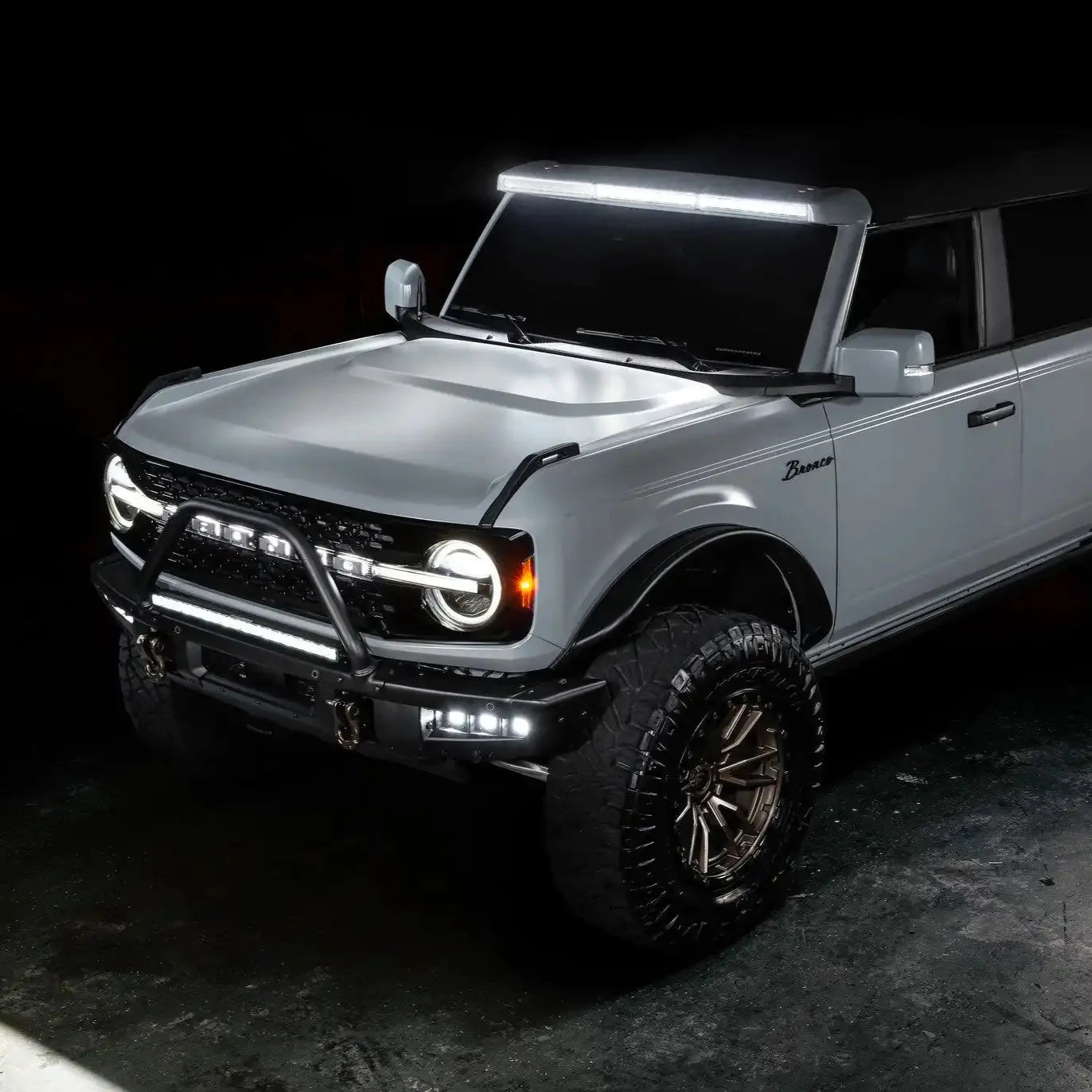

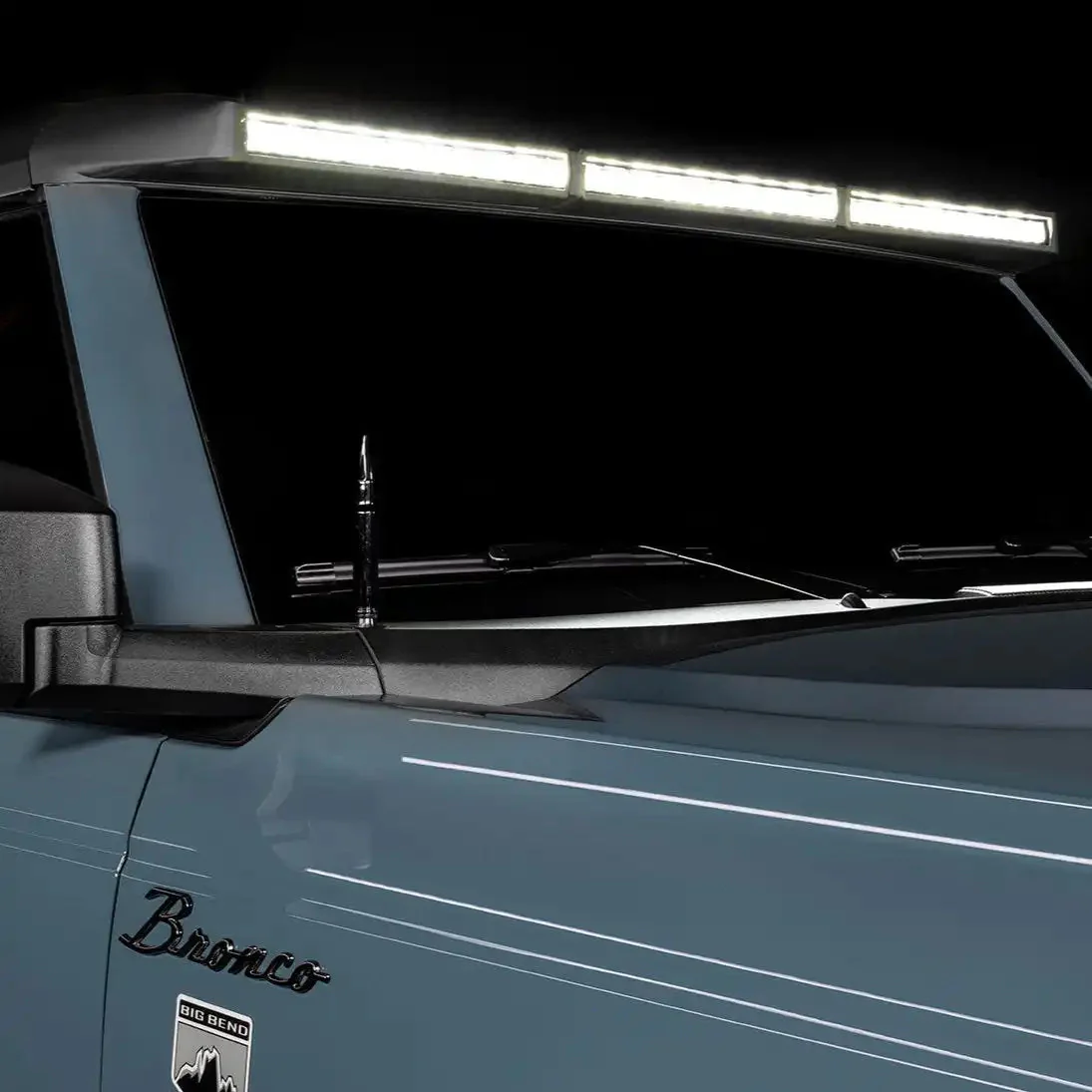

ORACLE’s patented integrated windshield roof LED light bar for the 2021–2025 Ford Bronco. Designed to blend seamlessly into your factory roofline — 18,000 raw lumens, 240W, IP68 waterproof, and fully compatible with hardtop, soft-top, and topless configurations.
✓ 18,000 Raw Lumens ✓ 240W / 14A ✓ 648m Max Range ✓ IP68 Waterproof ✓ Dual-Color Clearance ✓ Topless Compatible ✓ Patented OEM-Style Design ✓ Assembled in USA
ORACLE Part #: 5888-023 (Black) | 5888-023-MF (Carbonized Grey)
Product Overview ▼

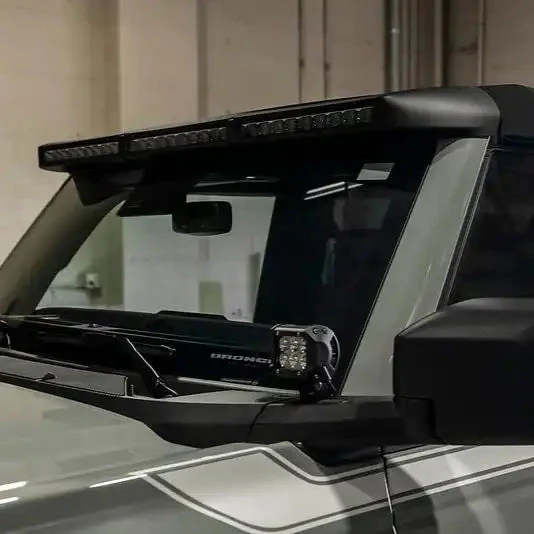

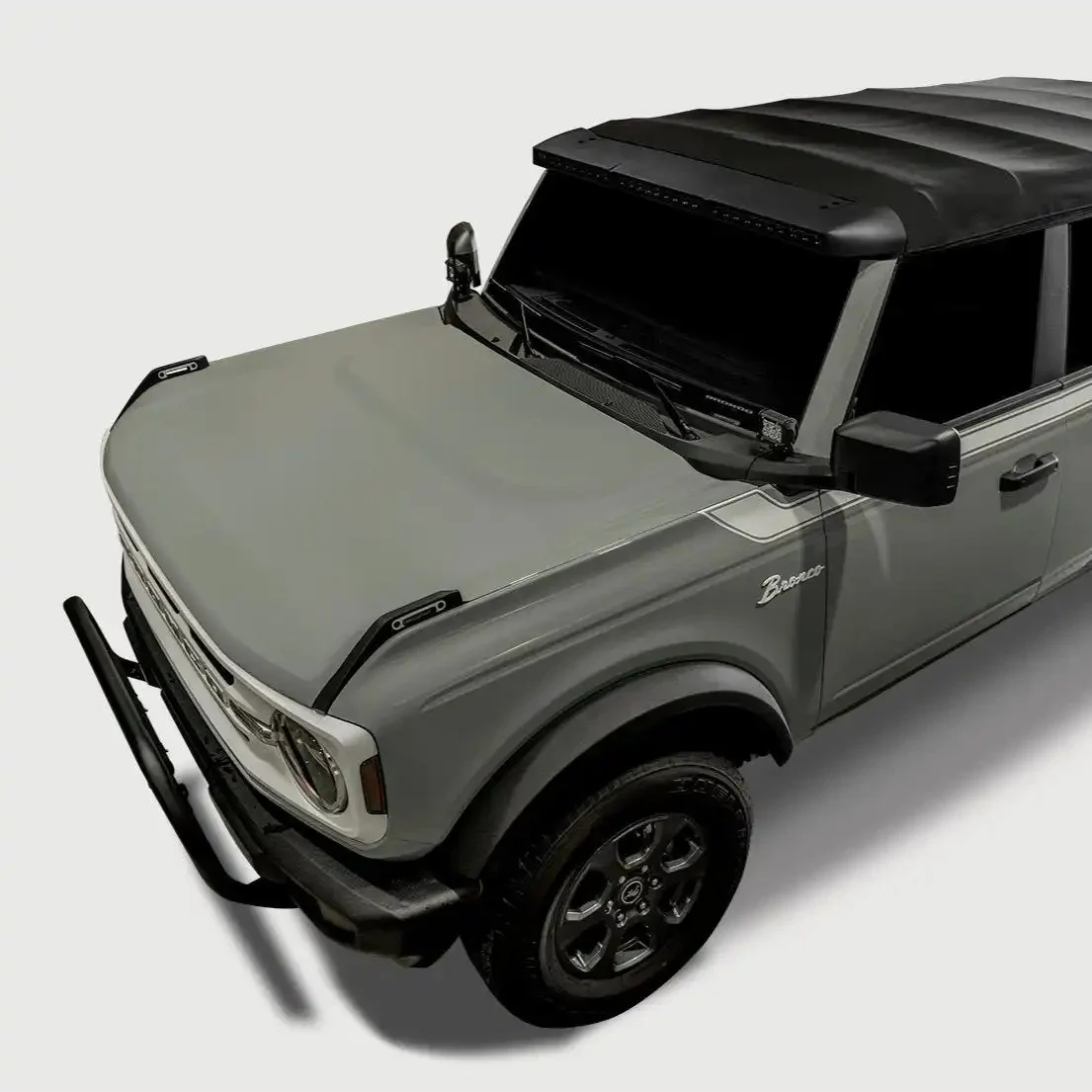

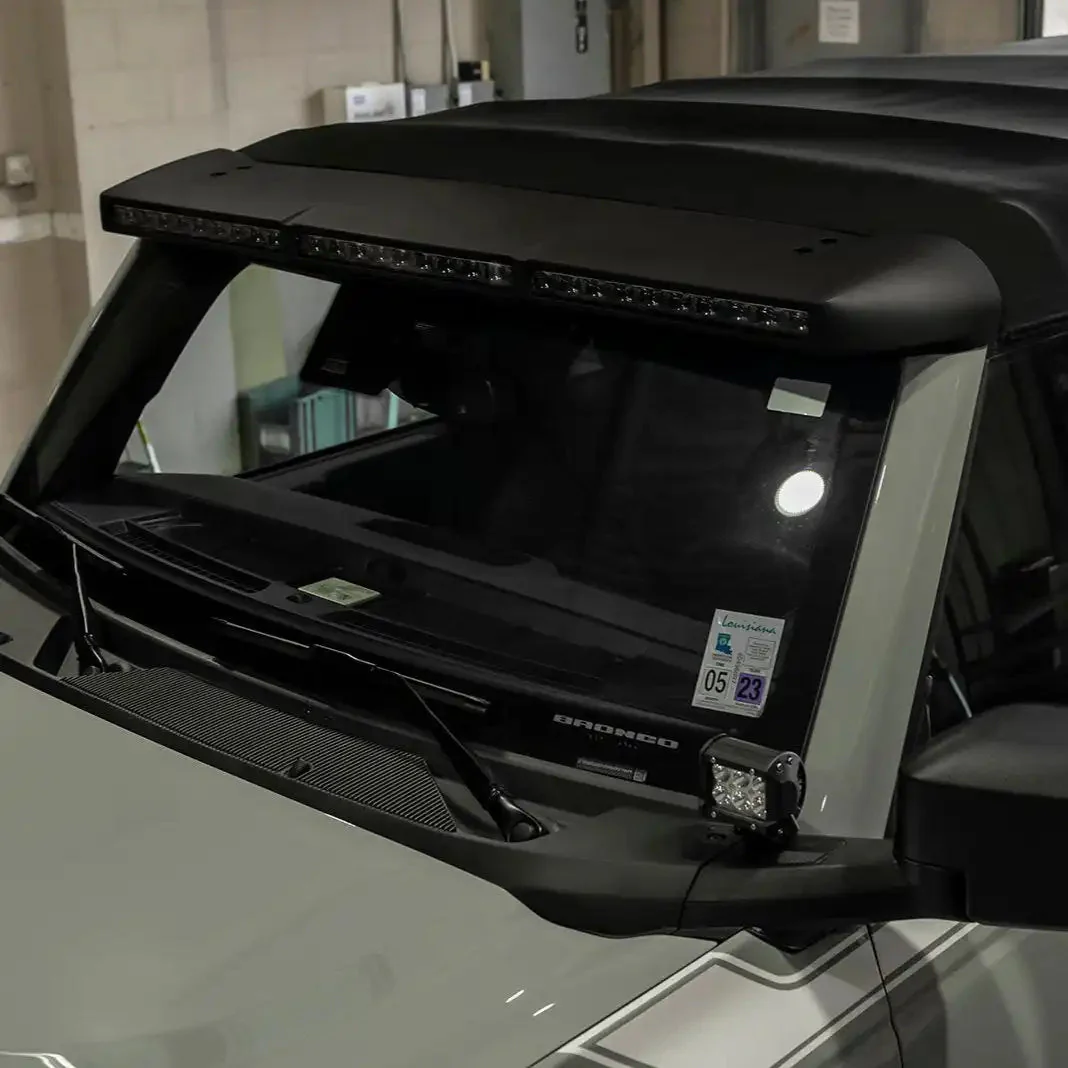

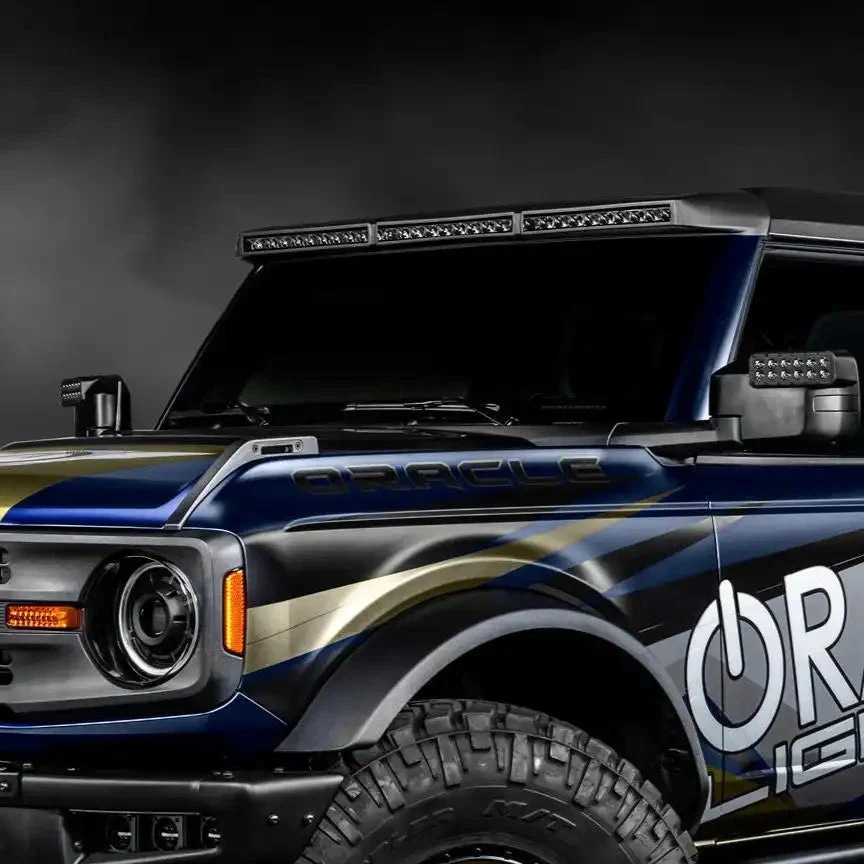

Most roof-mounted light bars look like an afterthought and create wind noise at highway speeds. The ORACLE Integrated LED Light Bar System solves both problems with a revolutionary, patented design that Bronco enthusiasts have been waiting for. The molded cowling seamlessly blends into your Bronco’s factory roofline — so natural, most people will think it came from the factory.

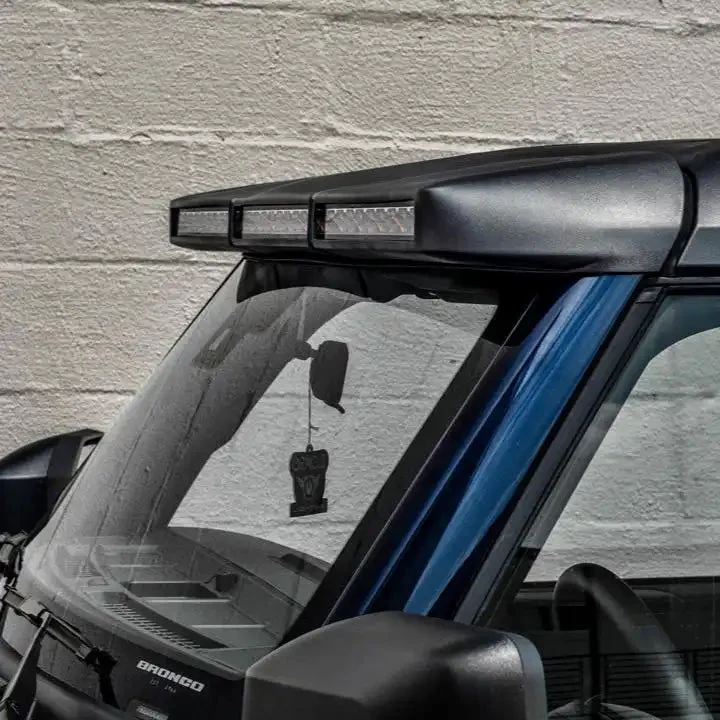

Unlike traditional external bars, this system mounts using factory accessory mounting points with no fabrication or drilling required. It retains full functionality whether you’re running a hardtop, soft top, or going completely topless — true Bronco versatility for every season and every trail.
Ships in Black or Carbonized Grey with a paint-ready polycarbonate housing. Backed by IP68 waterproofing, electronic thermal management, voltage protection, and a 50,000+ hour LED lifespan for years of reliable off-road performance.
⚠️ Compatibility Note: Not compatible with 2021+ Bronco Everglades models with pillar snorkel, or models with roof racks installed. Avoid automatic car washes with overhead brushes.
Key Features ▼

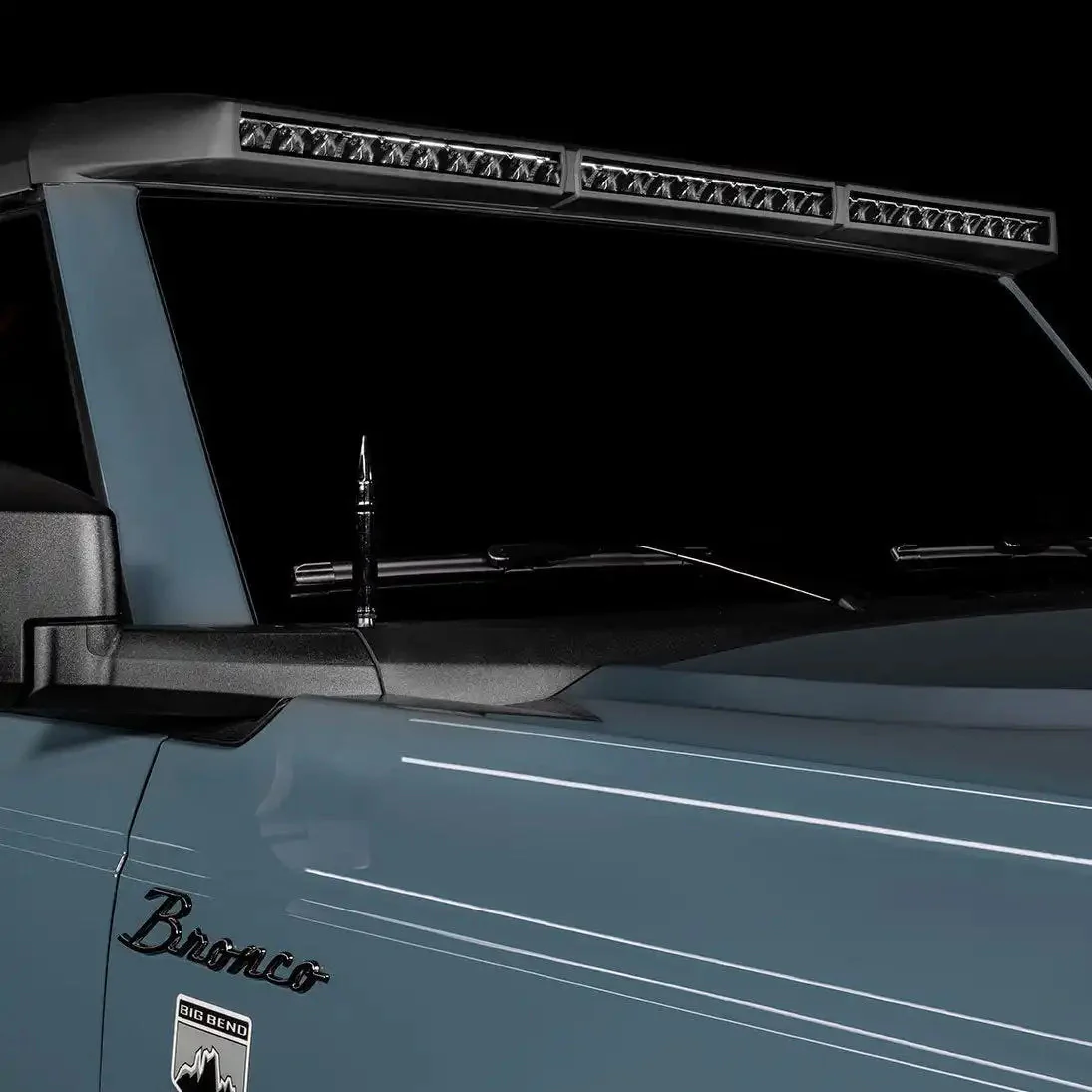

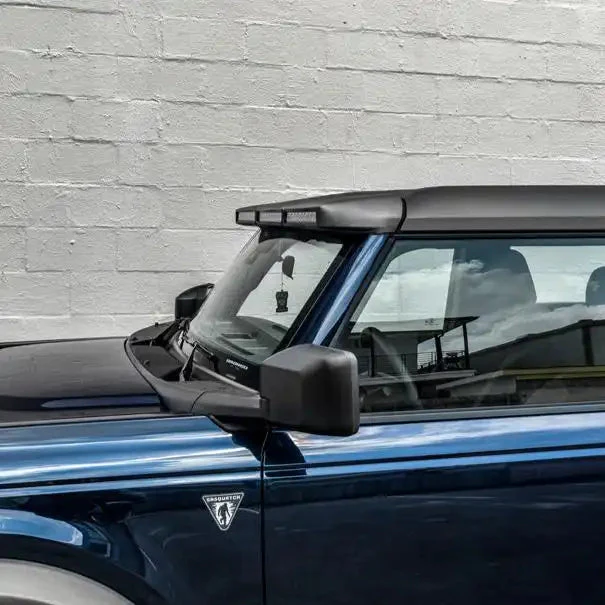

- Patented integrated design — molded cowling matches factory roofline for a true OEM appearance

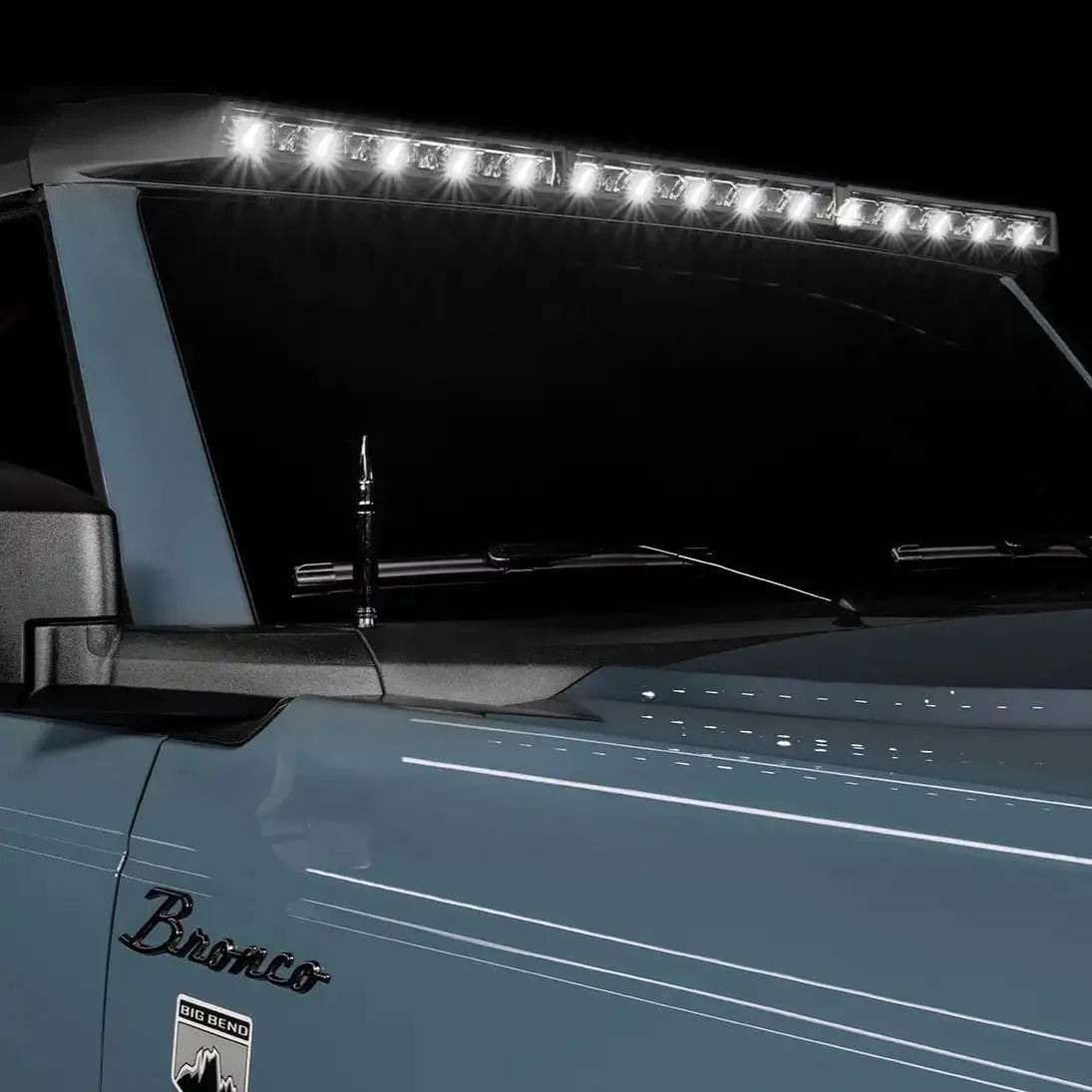

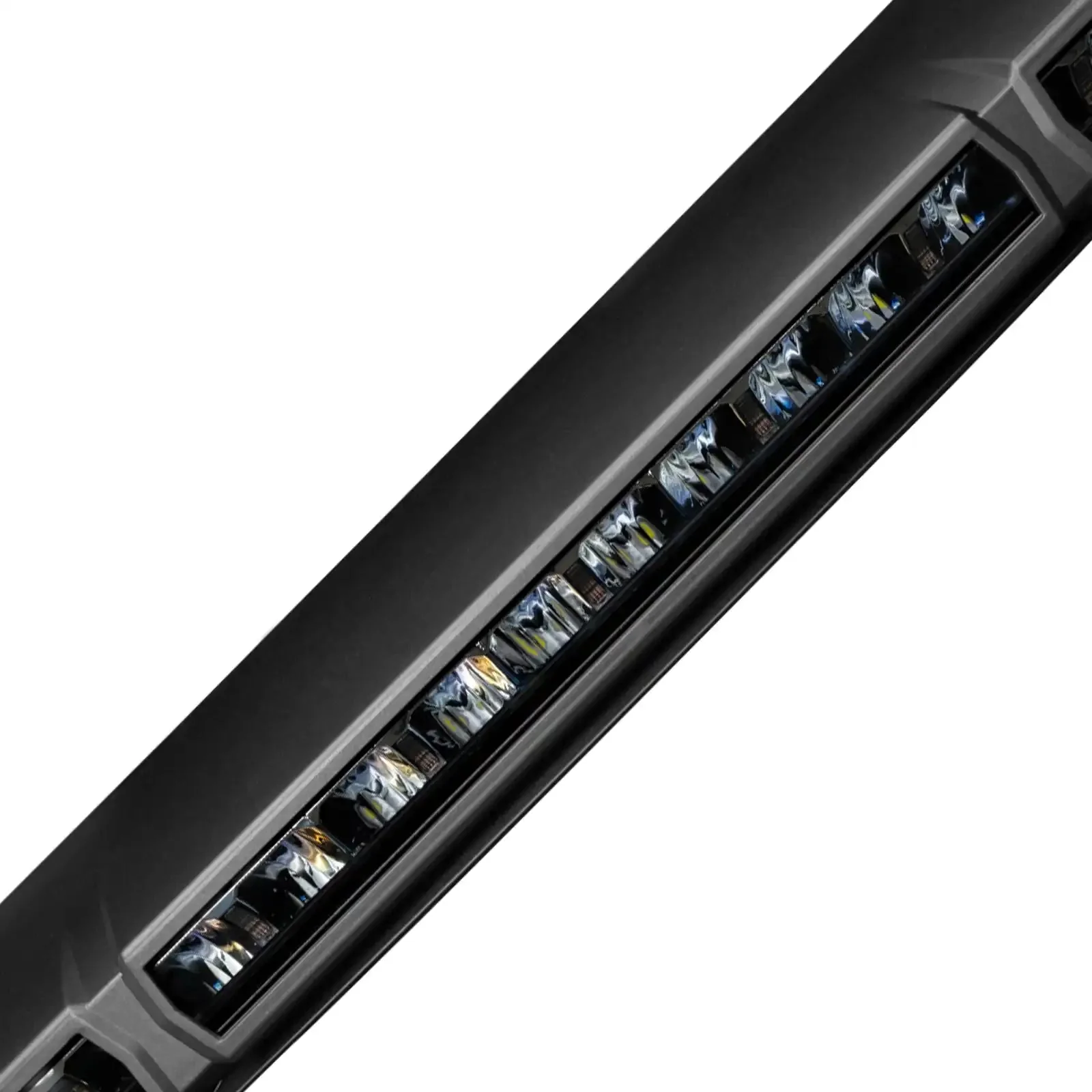

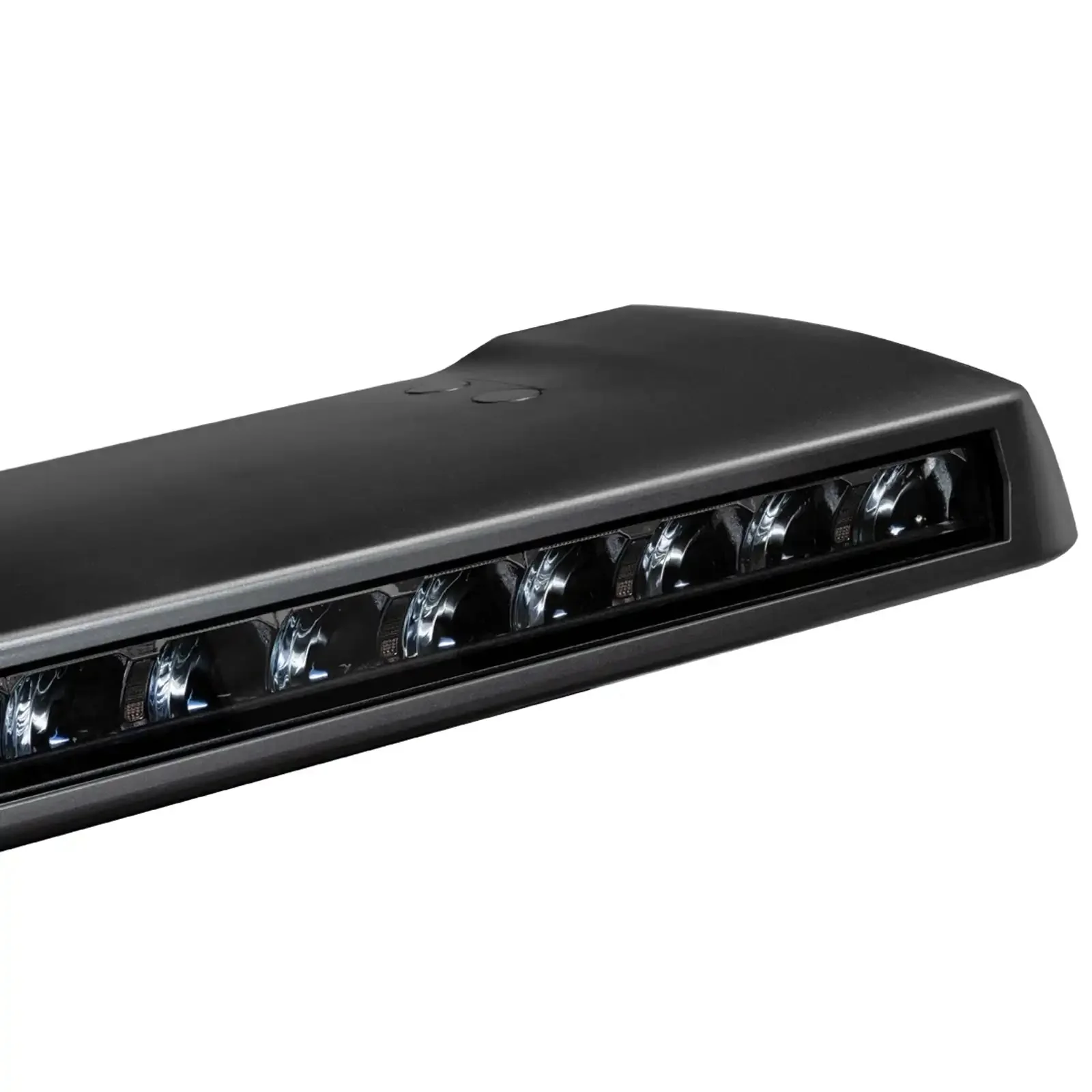

- 30x 8W LED emitters — reflector-facing technology maximizes output and throw distance

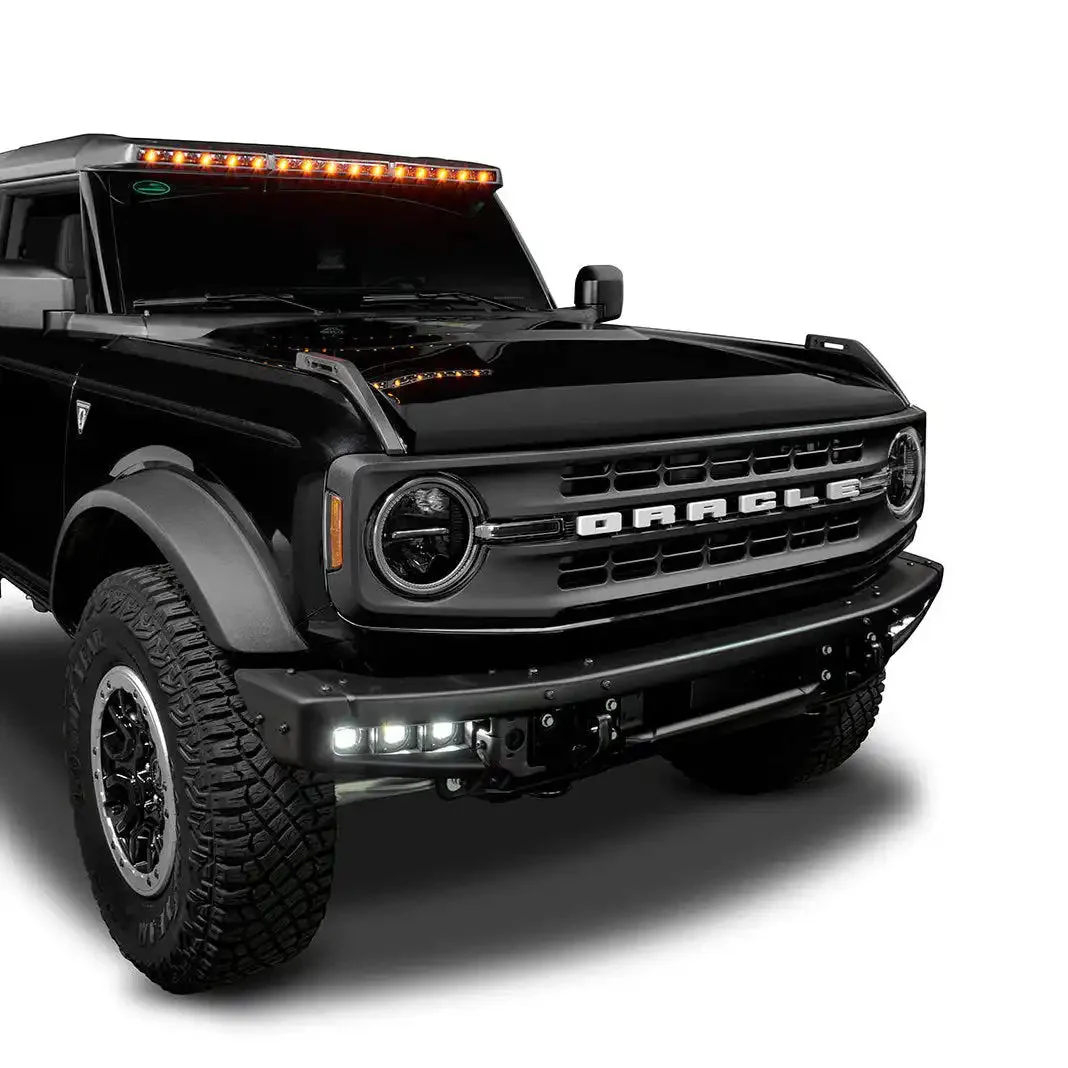

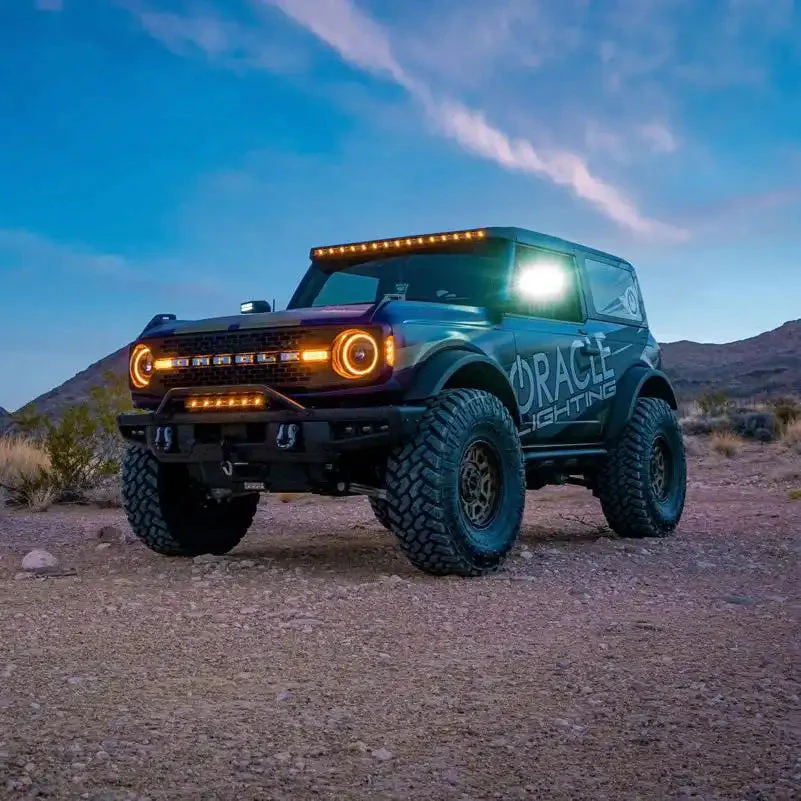

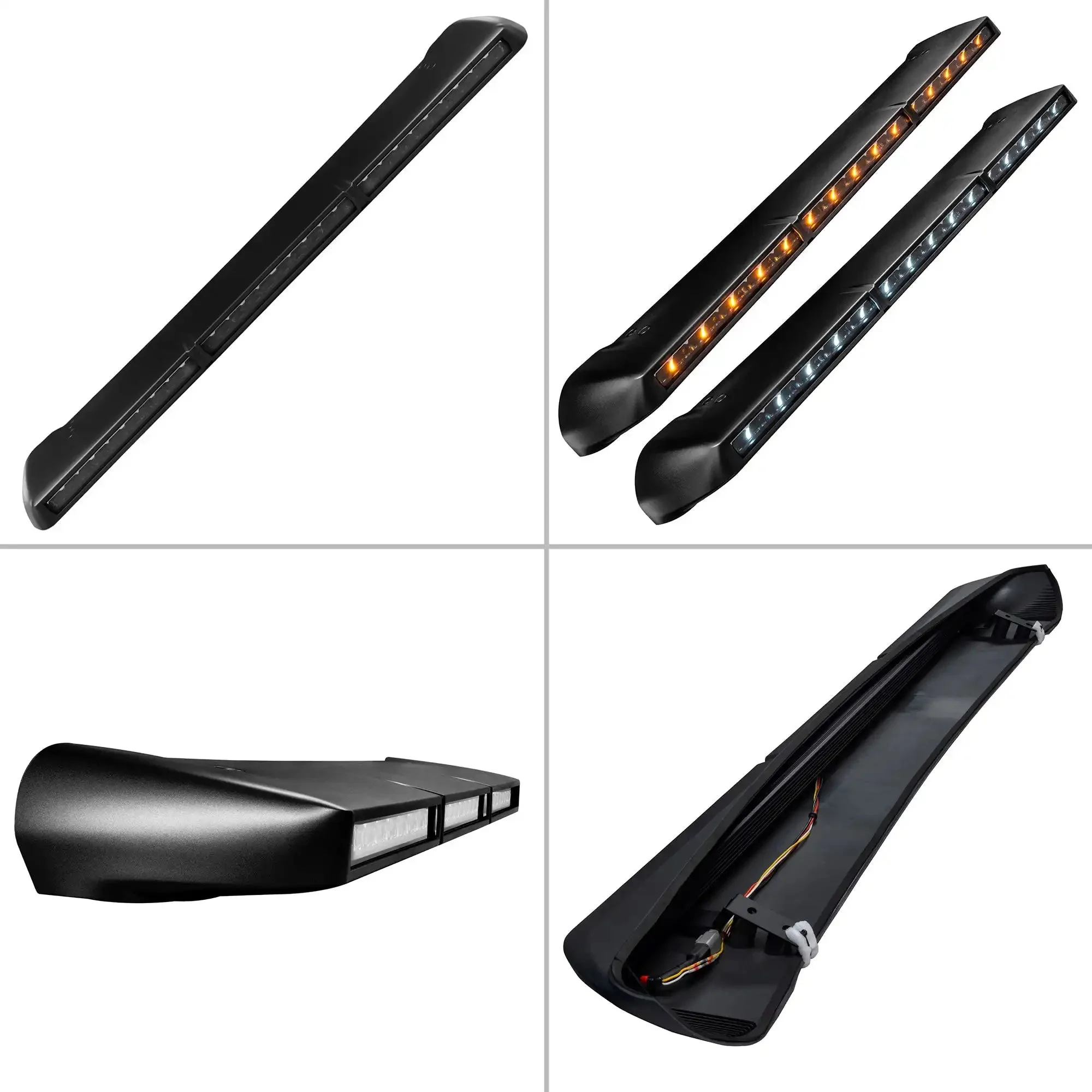

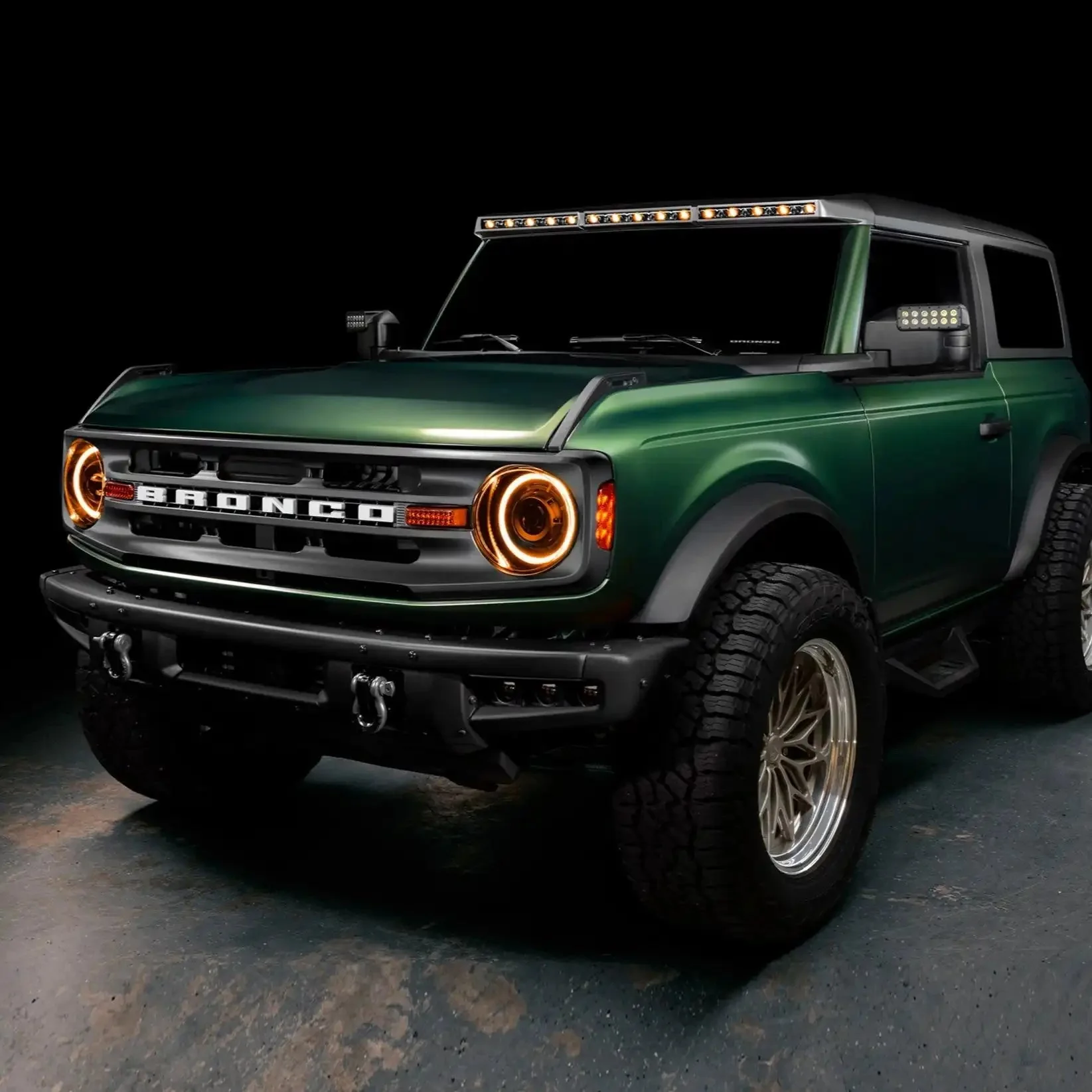

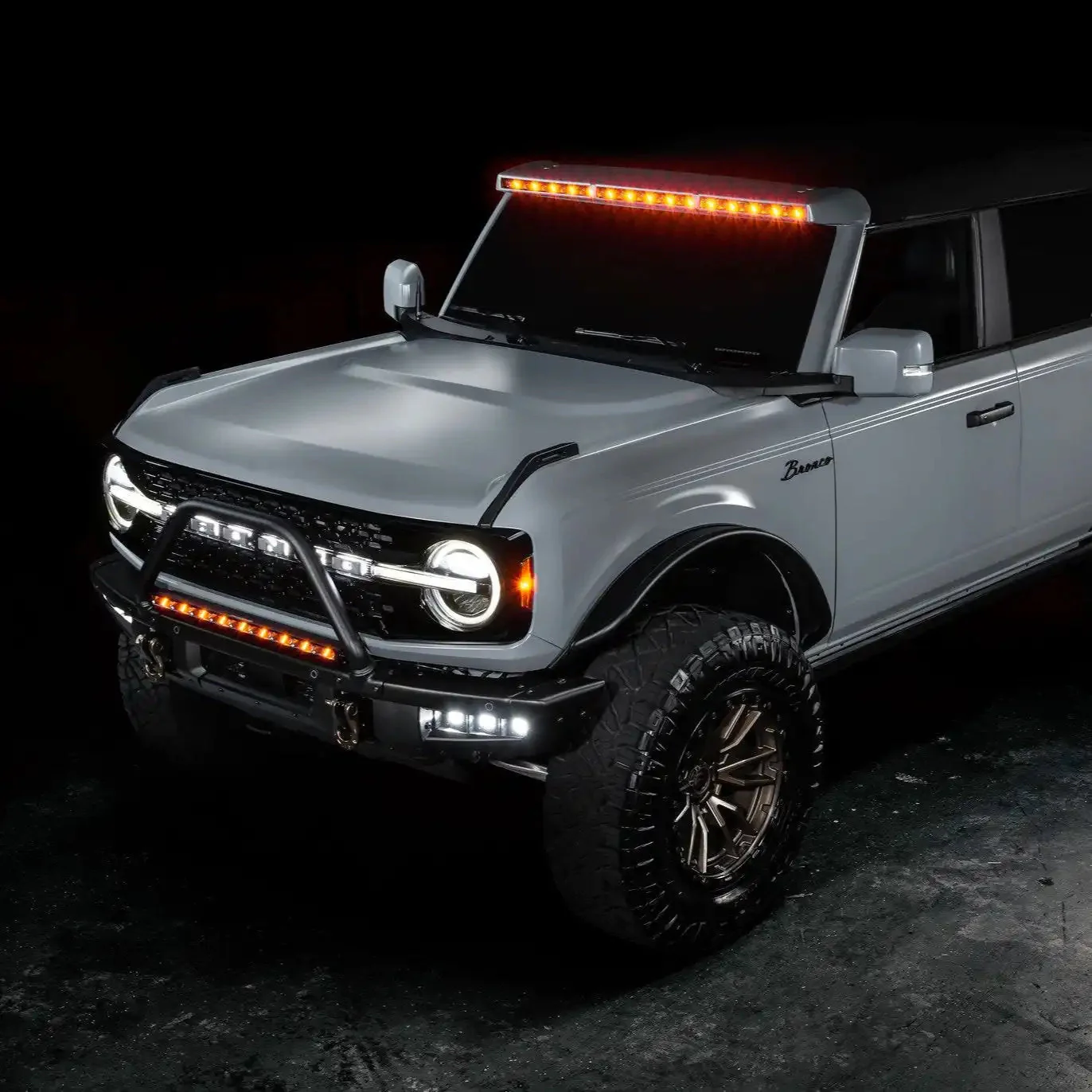

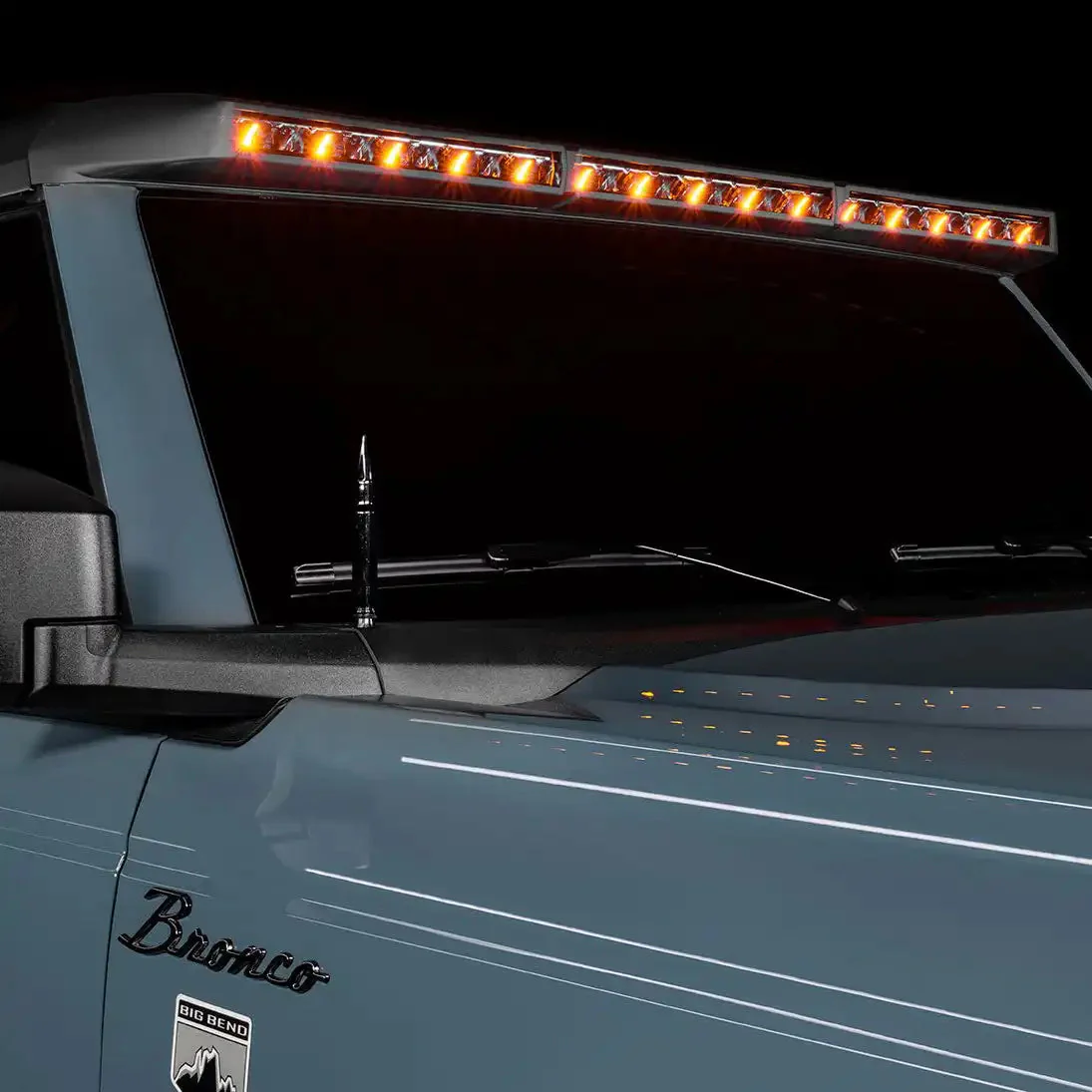

- Dual-color clearance lights — selectable amber or white; wire to Aux, parking lights, or DRL

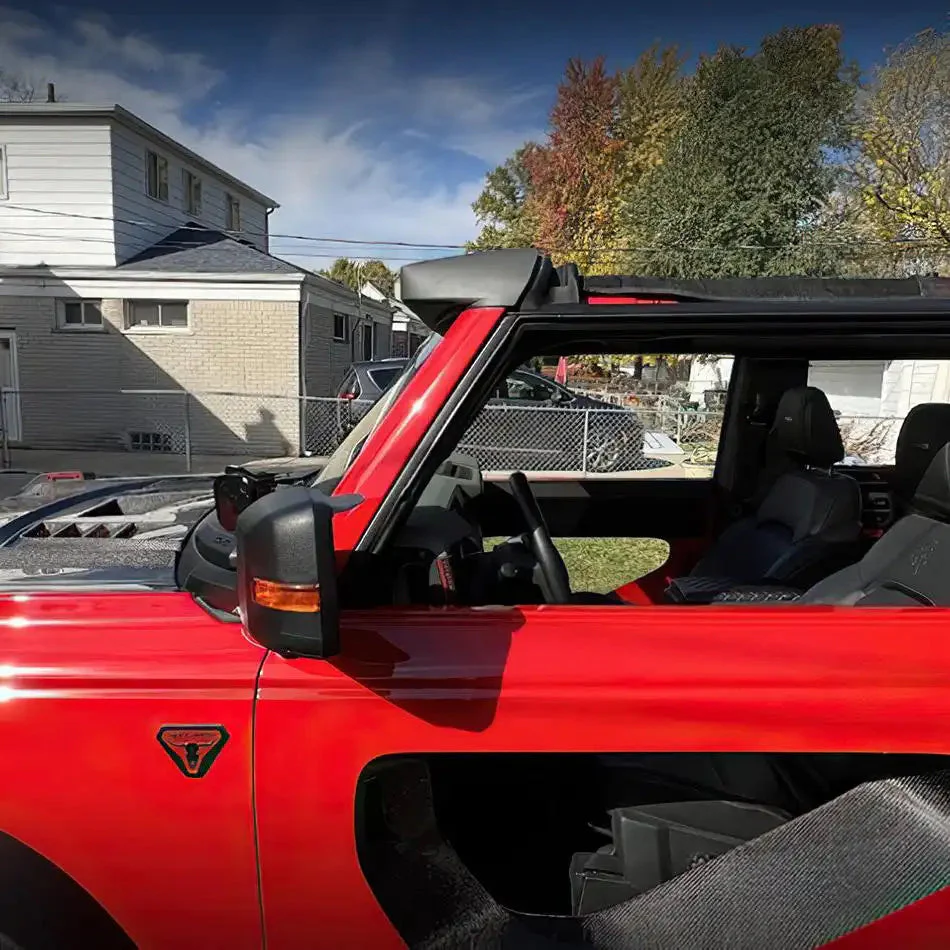

- Topless & soft-top compatible — retains full functionality in all Bronco top configurations
- Factory mounting points — uses existing accessory locations, no drilling or fabrication required

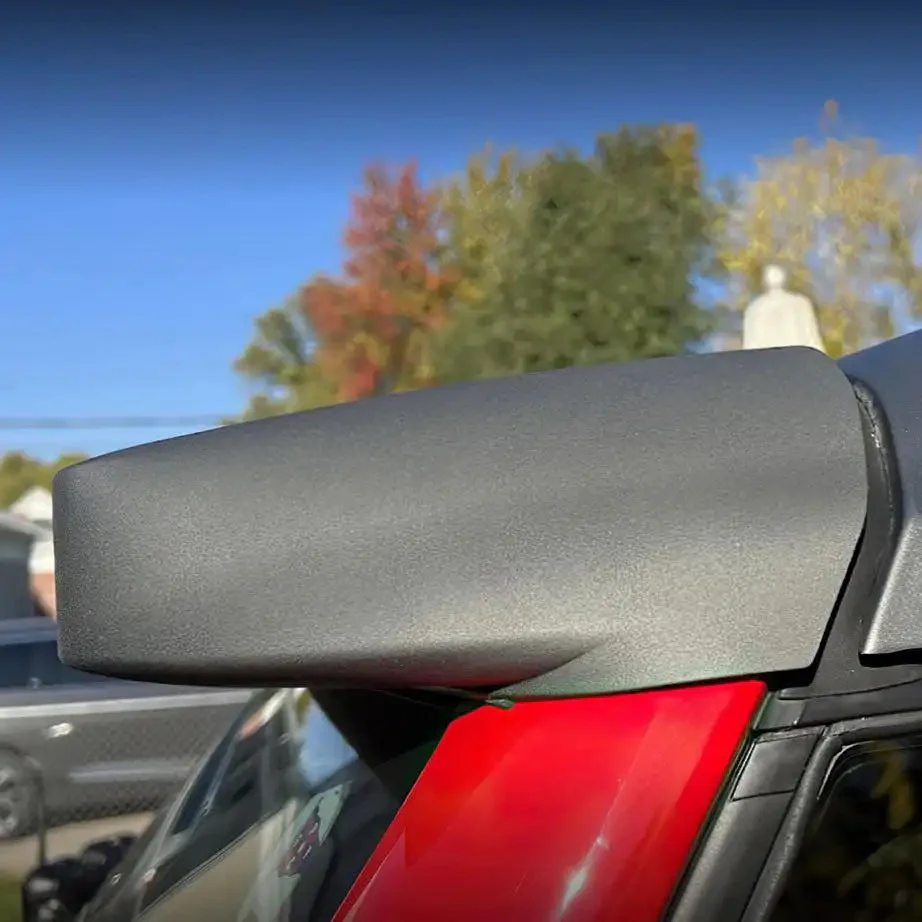

- Aerodynamic & quiet — integrated cowl reduces wind noise vs. traditional external bars
- Paint-ready housing — professionally paintable to match your Bronco’s color
- IP68 waterproof rating — fully submersible and weather-resistant
- Electronic thermal management — prevents overheating in extreme conditions
- Voltage protection — under/over voltage and reverse polarity protection
- Premium materials — 6030 aluminum housing, Lexan polycarbonate lens, powder coat finish
- 50,000+ hour LED lifespan — years of reliable illumination
- Assembled in the USA
Performance & Technical Specifications ▼
Raw Lumens18,000 lm
Effective Lumens14,200 lm
Peak Intensity420,000 cd
Total Wattage240W
Amp Draw14A @ 12V DC
Beam Pattern40° Driving Beam
Max Projection1 Lux @ 648m (2,125 ft)
Color Temperature5500K–6000K (Bright White)
LED Emitters30x 8W High-Power
LED Lifespan50,000+ hours
Operating Voltage9–32V DC
Waterproof RatingIP68 (Submersible)
Material & Construction ▼
Outer HousingPolycarbonate (Paint-Ready)
Lamp Housing6030 Aluminum Alloy
ReflectorPlated Polycarbonate
Lens MaterialLexan Polycarbonate
FinishPolyester Powder Coat
BreathersStainless Steel Anti-Fog Valves
ConnectorsMolded IP68 Waterproof
Ingress ProtectionIP68 (Dust & Water)
Fitment & Compatibility ▼
- 2021 Ford Bronco (All Trims)
- 2022 Ford Bronco (All Trims)
- 2023 Ford Bronco (All Trims)
- 2024 Ford Bronco (All Trims)
- 2025 Ford Bronco (All Trims)

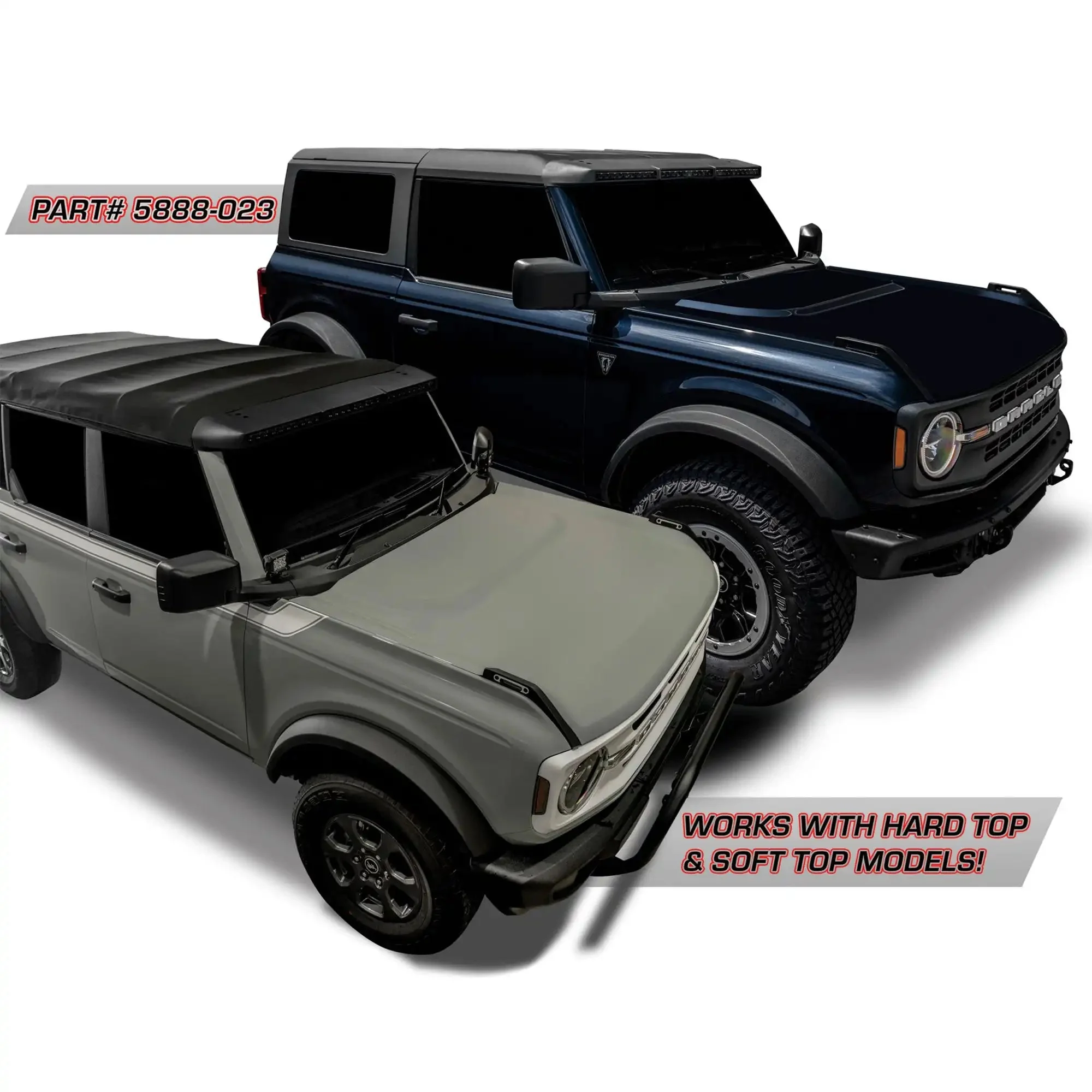

Top Configuration Compatibility:
- Hardtop (Factory or Aftermarket)
- Soft Top
- Topless / No Top
⚠️ Not compatible with: 2021+ Bronco Everglades with pillar snorkel — or models with roof racks installed. Use included 15" wiper blades for proper clearance.

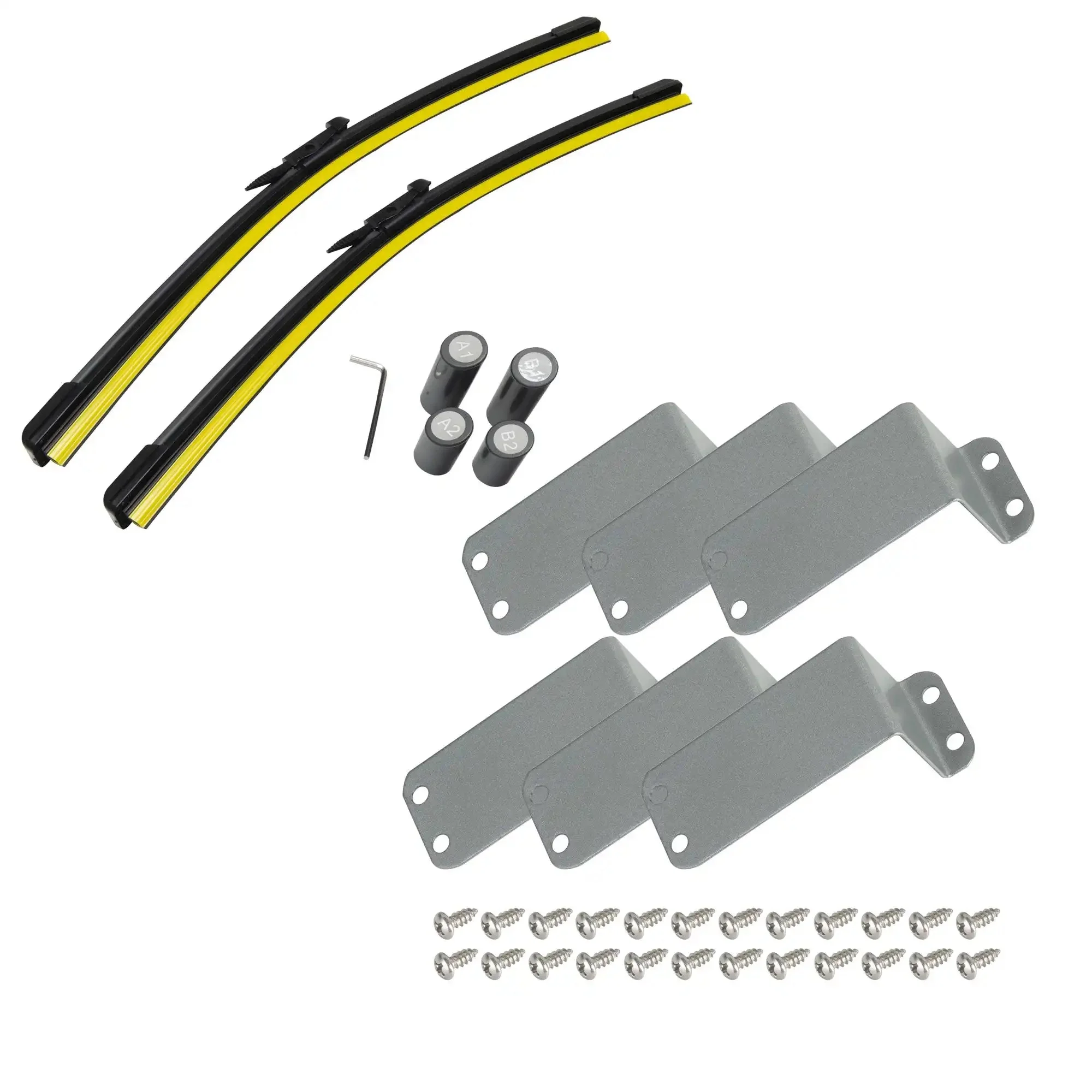

What's Included ▼

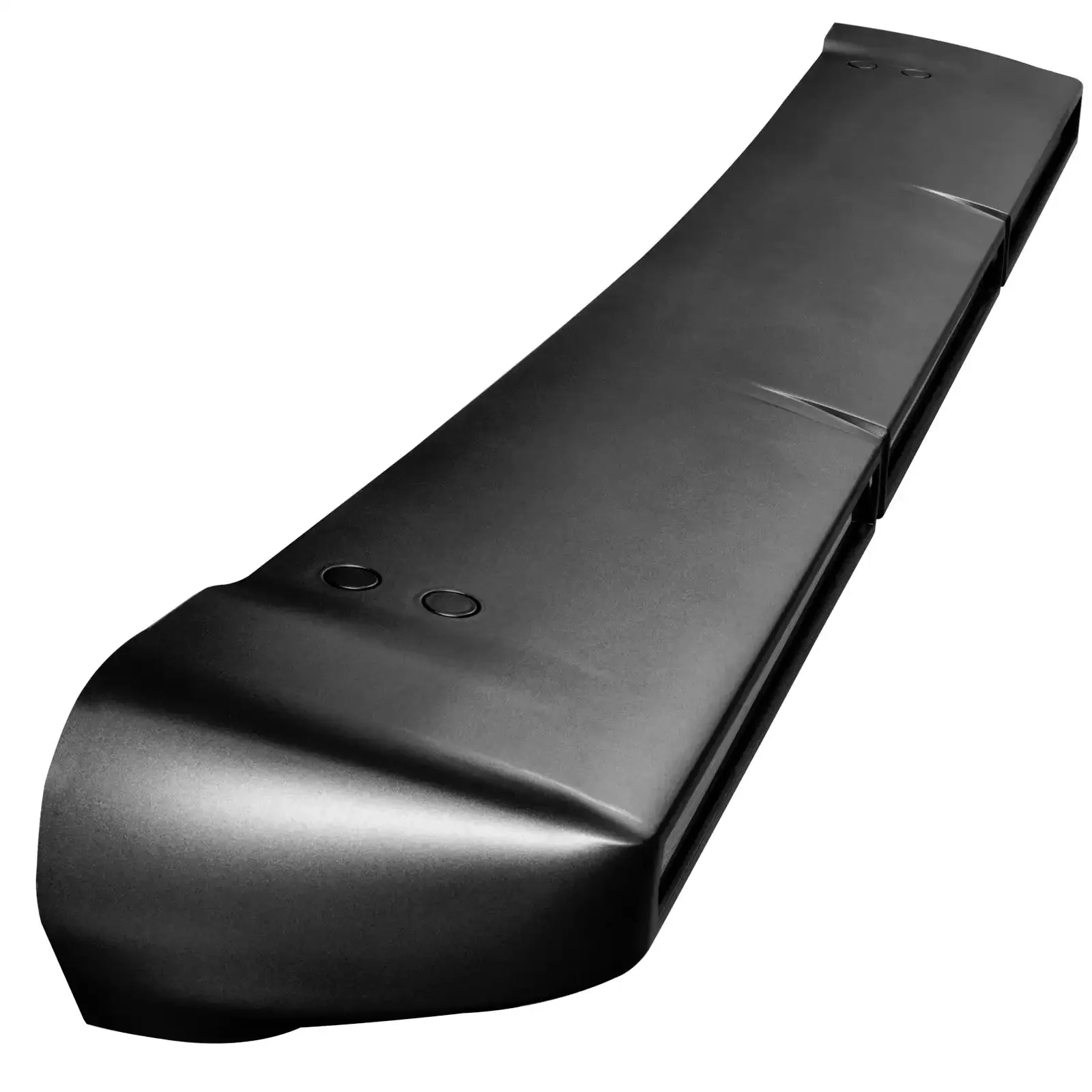

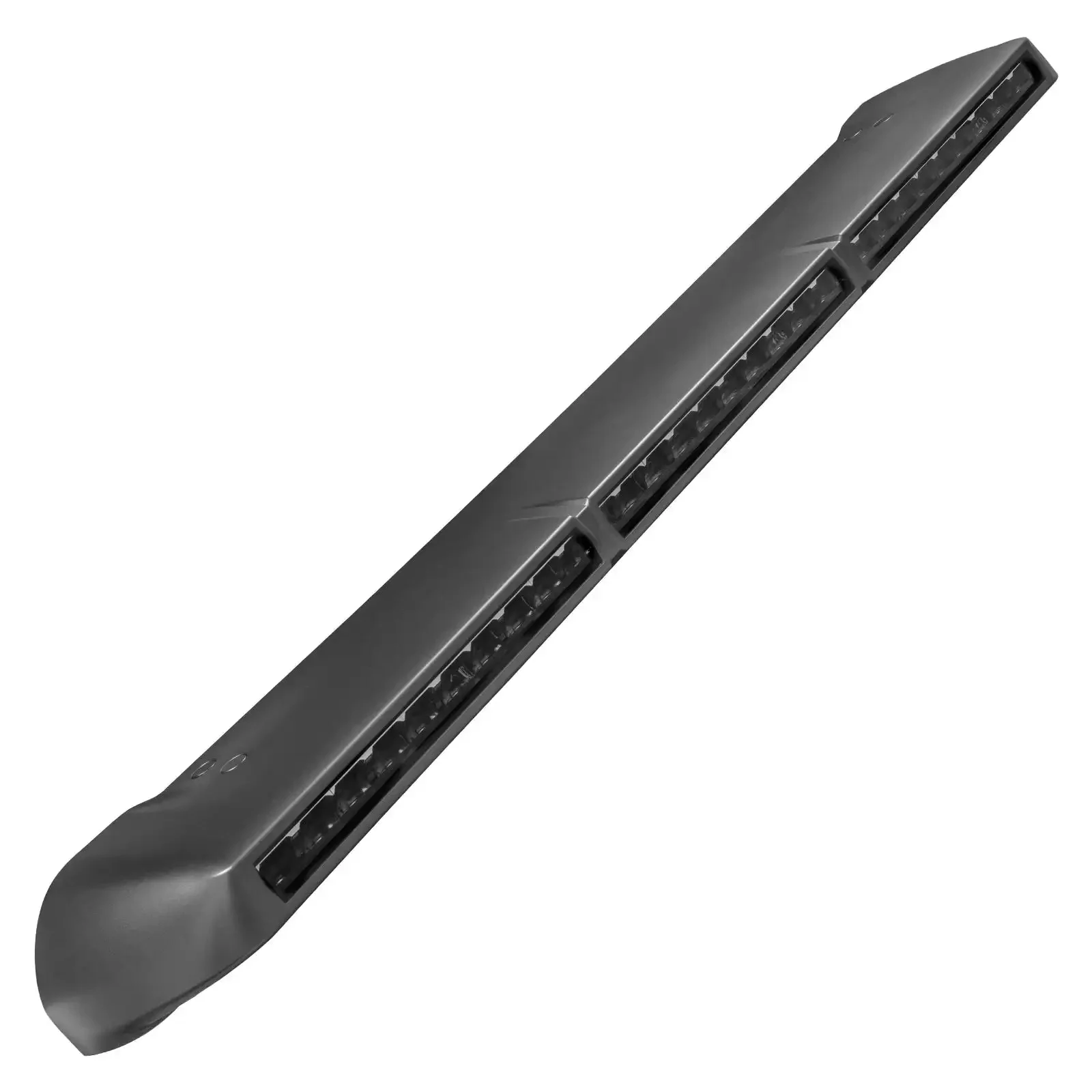

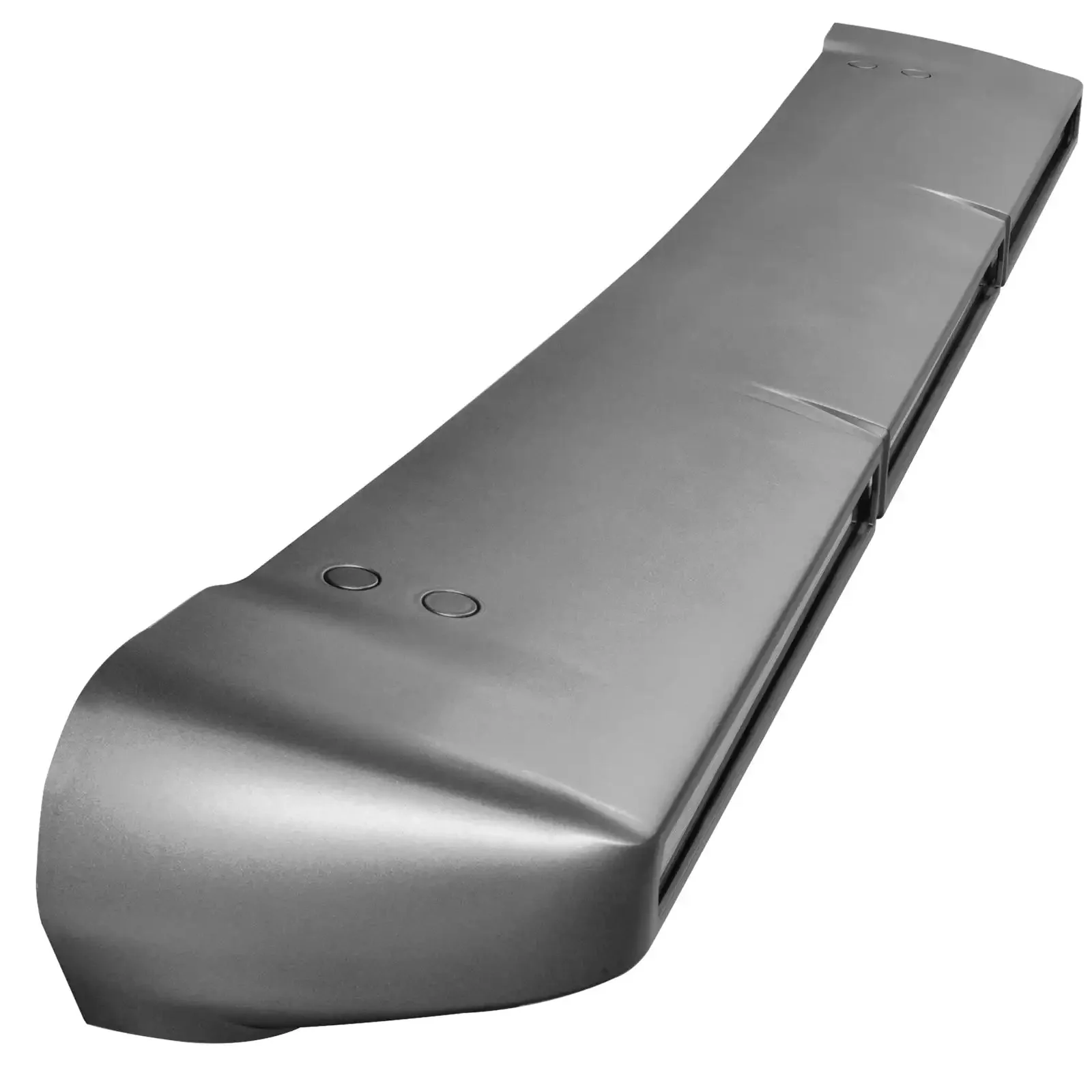

- Integrated LED Light Bar Assembly with Molded Cowling
- Polycarbonate Housing (Black or Carbonized Grey, paint-ready)
- Complete Wiring Harness with IP68 Connectors
- (6) Steel Truss Plates for Reinforcement
- (4) Accessory Bolt Covers
- (2) 15" Wiper Blades for Clearance
- Installation Hardware & Mounting Bolts
- Detailed Installation Instructions
- 1-Year Manufacturer Warranty
💡 Wiring harness for Aux switches sold separately — see Complete Your Build below.
Installation Guide & Resources ▼
- Estimated install time: 2–3 hours (moderate mechanical skill required)
- Tools needed: Basic hand tools + installation hardware (included)
- Recommended: Two-person installation for easier handling
- Mounting: Uses factory accessory mounting points — no fabrication required
📄 Full Installation Guide: Download PDF
🎨 Pro Tip: If you want to paint the housing to match your Bronco’s color, have it professionally painted before installation for the best color match.
Product Videos ▼
Complete Your Build ▼
Don’t have Aux switches?
Add the Switched Wiring Harness for easy plug-and-play installation.
→ Shop Switched Wiring Harness
Add the Switched Wiring Harness for easy plug-and-play installation.
→ Shop Switched Wiring Harness
Have factory Aux switches?
Use the Factory Aux Wiring Harness to integrate with your existing switches.
→ Shop Factory Aux Harness
Use the Factory Aux Wiring Harness to integrate with your existing switches.
→ Shop Factory Aux Harness
Part Numbers & Options ▼
5888-023Black (Currently Backordered)
5888-023-MFCarbonized Grey
Warranty, Shipping & Returns ▼
Warranty Shipping Returns & Exchanges
This product includes a 1-year manufacturer warranty. Standard shipping rates apply based on size and weight.
